V82RV01 / S82S1011 Receiving Card Overview
The ZDEC V82RV01 S82S1011 is an LED display receiving card for mono, dual-color and full-color real or virtual display operation. It supports gigabit communication and multiple parallel or serial output arrangements, with brightness and color correction for display adjustment.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model identifiers | V82RV01 / S82S1011 |
| Communication | Gigabit transmission |
| Parallel data output | 16 or 20 pairs |
| Serial data output | 16, 32 or 64 pairs |
| Scan support | 1 to 32 arbitrary scan |
| Decoding | 74HC138 or 74HC595 |
| Ghost-canceling output signal | Supported |
| Brightness correction | 8 bit |
| Color correction | 16 bit |
| Indicator-light interface | Supported |
| Cabinet detection | Supported |
Load Capacity by Display Mode
| Display type / mode | Maximum height (pixels) | Maximum width (pixels) |
|---|---|---|
| Mono or dual-color | 512 | 512 |
| Full color — Normal | 256 | 512 |
| Full color — Port Bisection | 256 | 512 |
| Full color — Port Extension | 512 | 512 |
The largest load capacity depends on module resolution. Match the display mode and module layout to the relevant row; the maximum dimensions are not a universal capacity guarantee.
Checking an Existing Display

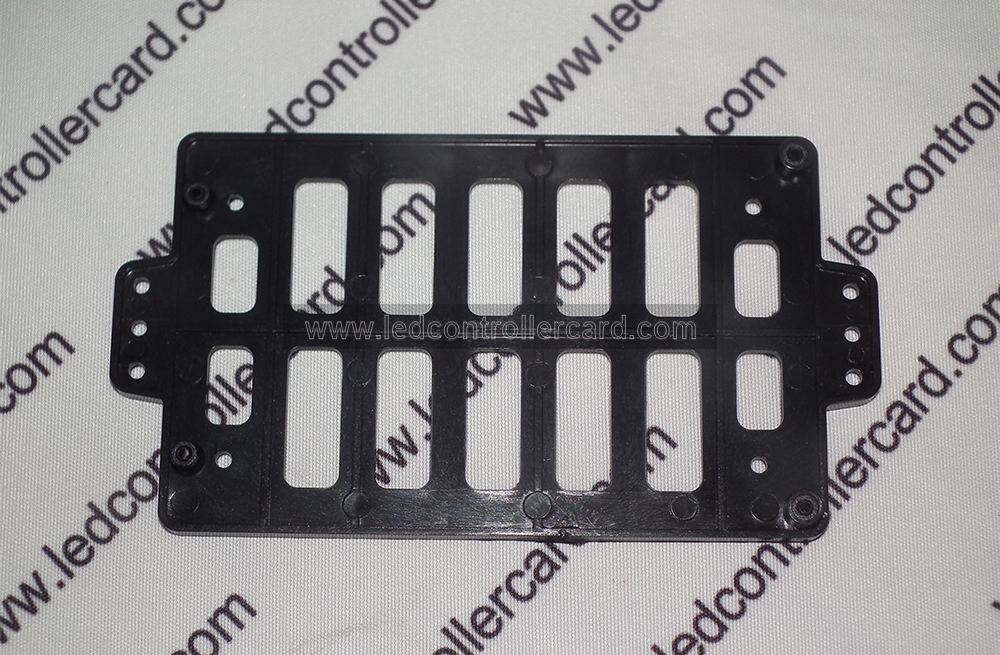

For replacement work, match the V82RV01 / S82S1011 board identifiers and connector layout. Verify the module resolution, scan mode, decoding method and parallel or serial output configuration before applying the loading limits. The product images below provide additional reference views of this model.
Frequently Asked Questions
What parallel data output does the V82RV01 support?
It supports 16 or 20 pairs of parallel data output.
Which serial output options are available?
The listed serial data output options are 16, 32 or 64 pairs.
What is the V82RV01 full-color loading capacity?
Normal and Port Bisection modes list 256 pixels high by 512 wide. Port Extension lists 512 high by 512 wide. The maximum load depends on module resolution.
Does the S82S1011 support display correction?
Yes. The V82RV01 S82S1011 supports 8-bit brightness correction and 16-bit color correction.
Which decoding methods and monitoring functions are supported?
It supports 74HC138 or 74HC595 decoding, a ghost-canceling output signal, cabinet detection and an indicator-light interface.
