Huidu HD-VP10 at a glance
The Huidu HD-VP10 is an all-in-one LED video controller that combines video processing with 10 Gigabit Ethernet outputs for Huidu receiving cards. It supports an LED canvas of up to 6.5 million pixels, with a maximum width of 16,000 pixels and a maximum height of 4,000 pixels. The input resolution and LED canvas capacity are separate limits: a 4K source does not mean the controller can drive an 8.3-million-pixel 4K LED canvas.
Key specifications
| Specification | HD-VP10 |
|---|---|
| LED output | 10 Gigabit Ethernet ports; up to 650,000 pixels per port |
| Total loading capacity | Up to 6.5 million pixels |
| Maximum canvas dimensions | 16,000 pixels wide; 4,000 pixels high, subject to the 6.5-million-pixel total |
| Video inputs | 1 × DP 1.2, 1 × HDMI 2.0, 1 × HDMI 1.4; optional 3G-SDI input with loop output |
| Maximum 4K input | DP 1.2 and HDMI 2.0: up to 4096 × 2160 at 60 Hz; HDMI 1.4: up to 4096 × 2160 at 30 Hz |
| Media and preview | USB 3.0 image/video playback; HDMI monitor output for a 1920 × 1080 at 60 Hz preview |
| Screen layout | Two windows and up to 256 scene presets |
How it fits an LED display system
Connect a supported video source to DP or HDMI, then route the 10 Ethernet outputs to compatible Huidu receiving cards. The controller handles source switching, cropping and scaling. Non-rectangular loading and Ethernet port overlap help map unusual screen shapes. Its HDMI monitor output lets an operator preview the output during setup; it is a preview connection, not an additional LED data output.
For playback without a live video source, the USB 3.0 port supports mixed image and video content. The HD-VP10 also provides audio input and output, an optional external brightness sensor connection, Wi-Fi control, LAN debugging, RS232/RS485 central control and EDID import/export. Confirm optional 3G-SDI, 4G and infrared remote-control accessories when ordering.
Choosing the right controller
Choose the HD-VP10 when your receiving-card layout needs up to 10 Gigabit Ethernet outputs and the LED canvas stays within 6.5 million pixels. Check both the total pixels and the maximum width and height before specifying the display. If you need a larger 12-port, 7.8-million-pixel controller, compare the Huidu HD-VP12. For another controller category, browse our LED video controllers.

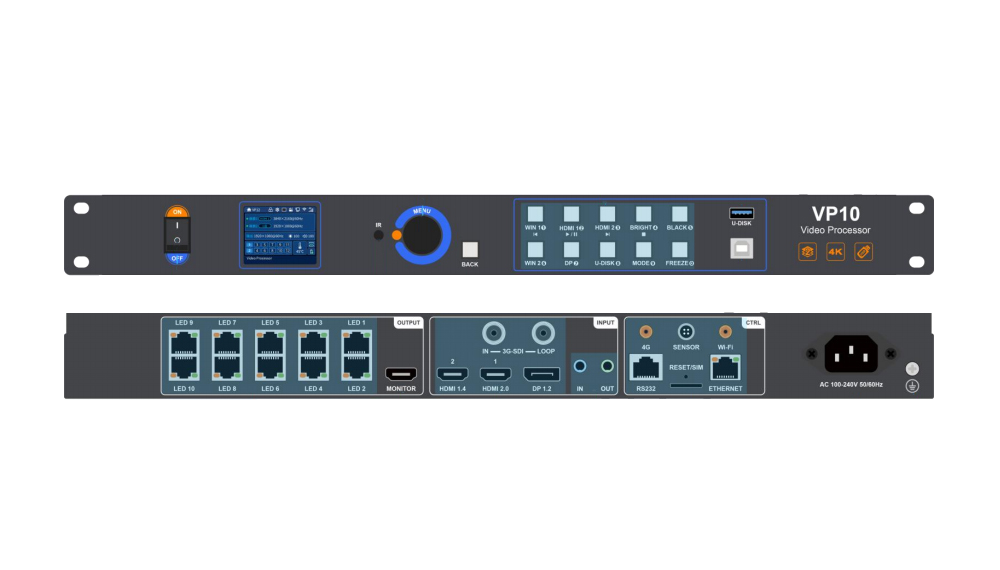

Product image and documents
Download specification: Huidu HD-VP10 All-in-one LED Controller Specification (PDF).
For model and interface details, see Huidu’s HD-VP12/10/8/6 product page and the official HD-VP10 user manual (PDF).
Conclusion
The HD-VP10 brings video processing, USB playback and 10 Ethernet outputs into one unit for LED displays up to 6.5 million pixels. Match its output limits to your actual screen map and verify optional inputs before purchase.
