LISTEN XC2 Seven Color Asynchronous LED Screen Controller Parameter:
|
Parameter |
|
| Memory | 2MByte |
| Suitable for | Seven color and Full color led modules |
| Support Range | 1280*16640*32(4 scan)
320*64(16 scan) |
| Software function | Cluster management/Multi-
program editing/Multi-area display/More language |
| Program number | 128 programs, 16 area for
each program |
| Area type | Image/Text/Animation/Time/Dial/
Countdown/up/Temperature |
| Frame display | ProgramWater frame/Area
Water frame |
| Clock display | Digital clock,Analog clock,
Positive timing,Negative timing |
| Communication port | USB port |
| Display Port | 2XHUB08,2XHUB75 |
| Sensor | Temperature Sensor |
| Brightness Adjustment | 16 grade, auto brightness
adjustment/ adjust by software |
| Remote Switch | Support timing turn on/off ,
Turn on/off by software |
| Working Voltage | 3.5V~6V |
| Max Power | <1W |
| Working Temperature | -40℃-85℃ |
| Secondary Development | Provide complete DLL |
| Software | LED Player6.0 |

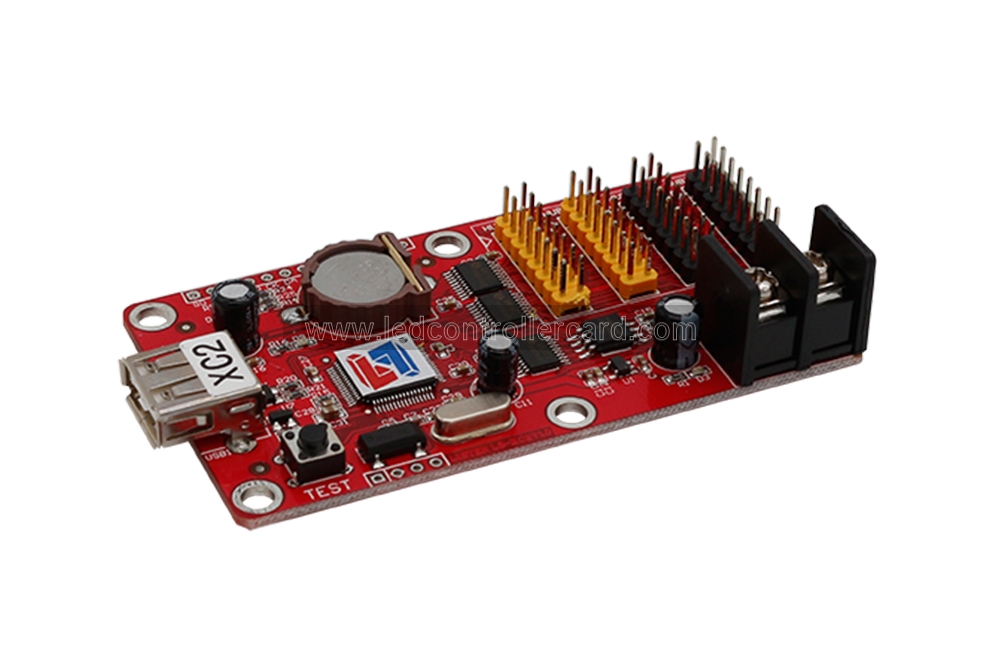

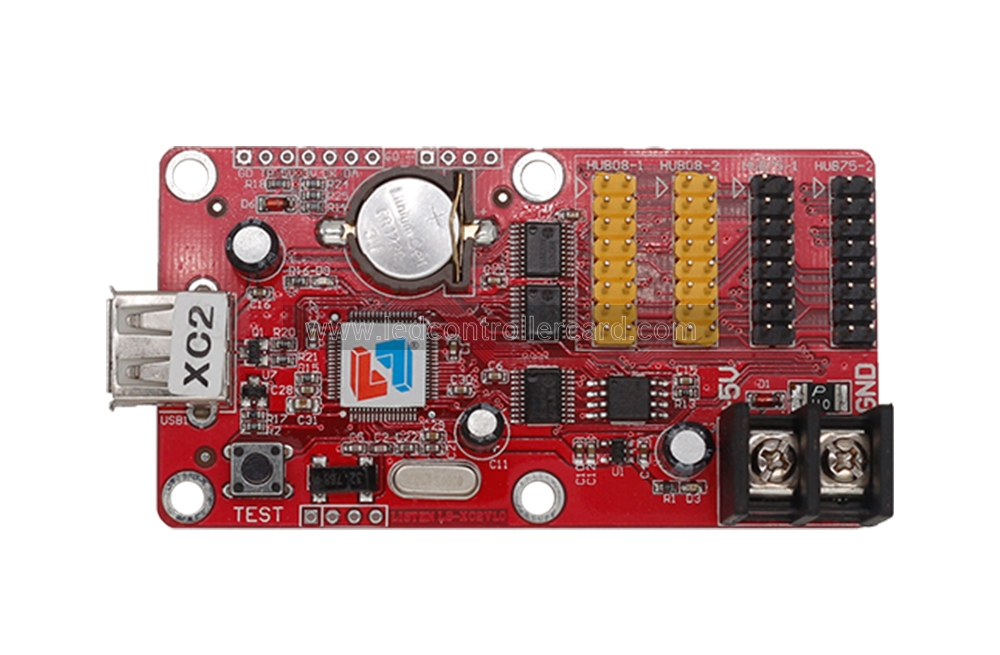

More Pictures of LISTEN XC2 Seven Color Asynchronous LED Screen Controller:
.jpg "LISTEN XC2 Seven Color Asynchronous LED Screen Controller")
Download Specification of LISTEN XC2 Seven Color Asynchronous LED Screen Controller:
