P16 Outdoor double Sided install back-to-back Front Service LED Sign Notice before order:

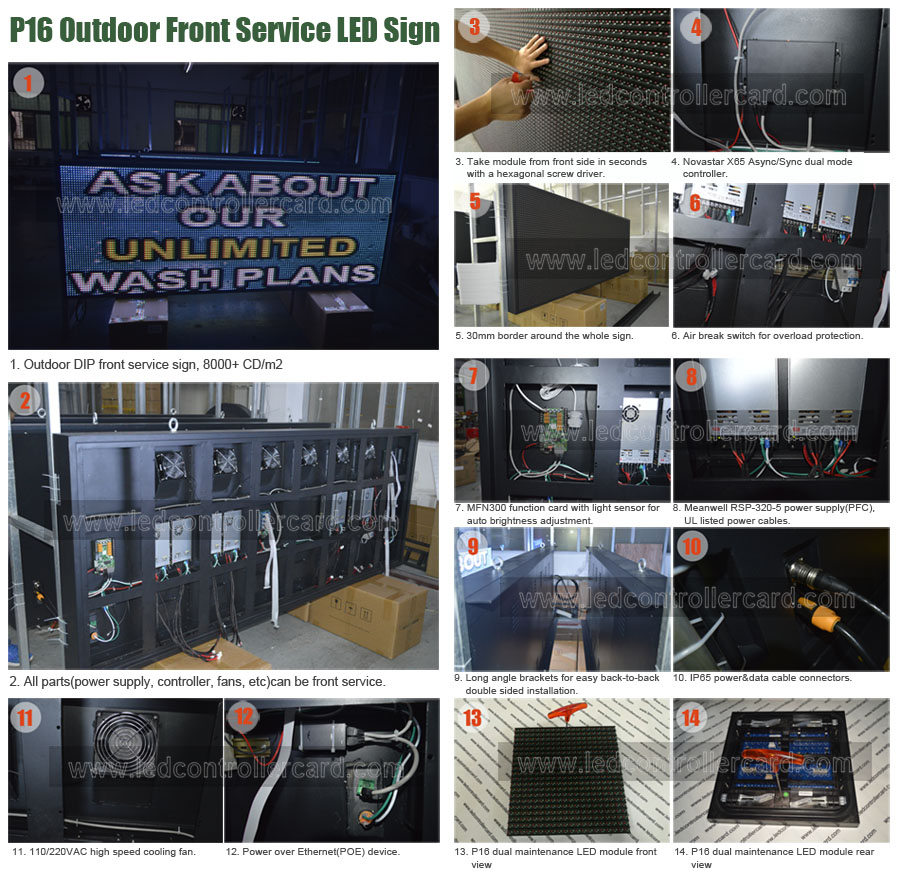

1) Parts included: 2 pcs 2..56m*0.96m Outdoor Aluminum cabinet, P16 Outdoor Dual Maintenance LED modules(maintain from the front side of the display), Meanwell RSP-320-5 power supply, NOVASTAR receiving card MRV336, X65 Sync/Async Dual Mode Control Box, MFN300+ NS048C-1 Light Sensor, Long angle Bracket, and POe Module, UL listed power cables and signal cables.
2) Buy cabinets of same batch: to avoid brightness&color difference on one single screen, you must buy cabinets of the same batch. That is, you must buy the cabinets for one single screen by one order from us.
3) Shipping: The above price does not include shipping cost. The goods can be shipped by sea, by air, by train or by express. You can get your forwarder to ship the goods for you. If you need us to ship the goods, please talk with our online sales to confirm the shipping details.
4) Tariff: Our price does not include any tariff or duties at the destination, you should do import customs clearance and pay all tariff or duties locally.
P16 Outdoor double Sided install back-to-back Front Service LED Sign Features:
1) Dual-maintenance, from both the front side and the rear side. People usually use its front service function.
2) Easy maintenance, easy to disassemble the modules with a hexagonal screwdriver.
3) No screws, easier to disassemble the modules and mount the modules on the cabinet.
4) 16mm pixel pitch is suitable for commercial LED signs.
5) New plastic cover with new mold, smaller module gaps and better screen flatness.
6) Customized cabinet size, such as 2560x960mm, 1920x960mm, and 1600x960mm etc.
7) Work well with asynchronous control system, such as NOVASTAR and XIXUN.
Leave a Inquiry for your own customized LED Sign
P16 Outdoor double Sided install back-to-back Front Service LED Sign Applications:
Outdoor commercial LED signs demanding front service and fast diassemble and assemble.
P16 Outdoor double Sided install back-to-back Front Service LED Sign Specification:
| LED Module | |
| Module | P16 outdoor dual maintenance LED Display Module |
| Pixel Pitch | 16 |
| Pixel configuration | DIP346 1R1G1B |
| Density | 3,906 pixel/㎡(real pixel) |
| Module Resolution | 20(L) * 20(H) |
| Module Dimension | 320(L) * 320(H) * 44(D) |
| Driving Mode | Constant current, Static Scan |
| Module Mask | Pure Black Mask -High Contrast Screen |
| LED Cabinet | |
| Module Quantity in a Cabinet | 8(L) *3(H) |
| Display Area Size | 2560（L）* 960（H）*2PCS |
| Cabinet Dimension | 2620（L）* 1020（H）* 148(D)mm*2PCS (30mm Protection Border) |
| Cabinet Resolution | 160(L) * 60(H)*2PCS |
| Cabinet Material | Aluminum |
| Cabinet Weight | ≈105kg/pc |
| Gross Weight | 240KG for 2pcs LED Sign |
| Electricity Parameter | |
| Optical Ratings | |
| Brightness | ≥8,000 cd/㎡ |
| Viewing Angle | 120° |
| Best Viewing Distance | ≥8m |
| Gray Grade | 16,384 levels for each color |
| Display Color | 4,398,046,511,104 |
| Brightness Adjustment | 100 grades by software or automatically by sensor |
| Power Supply | |
| Operation Power | AC100-240V 50-60Hz Switchable |
| Max. Power Consumption | 1500W/PC |
| Average Power Consumption | ≈550W/PC |
| Control System | |
| Correction Scale Level | 16bits |
| Frame Frequency | ≥60Hz |
| Screen Refresh Frequency | ≥3,600Hz |
| Gamma Correction | -5.0～5.0 |
| Input Signal | Composite Video, S-video, DVI, HDMI, SDI, HD-SDI |
| Control Distance | 100m(Ethernet cable); 10KM(optical fiber cable) |
| Support VGA Mode | 800*600, 1024*768, 1280*1024, 1600*1200 |
| Color Temperature | 5000—9300 adjustable |
| Brightness Correction | Pixel by pixel, module by module, cabinet by cabinet |
| Reliability | |
| Working Temperature | -20～+60 ºC |
| Stored Temperature | -30～+70 ºC |
| Working Humidity | 10%～90% RH |
| Lifetime | 100,000 hours |
| MTBF | 5000 hours |
| Continuous Working Time | ≥72 hours |
| Protection Grade | IP65(Front Side); IP54(Rear Side) |
| Out of Control Pixel Rate | ≤0.01% |
