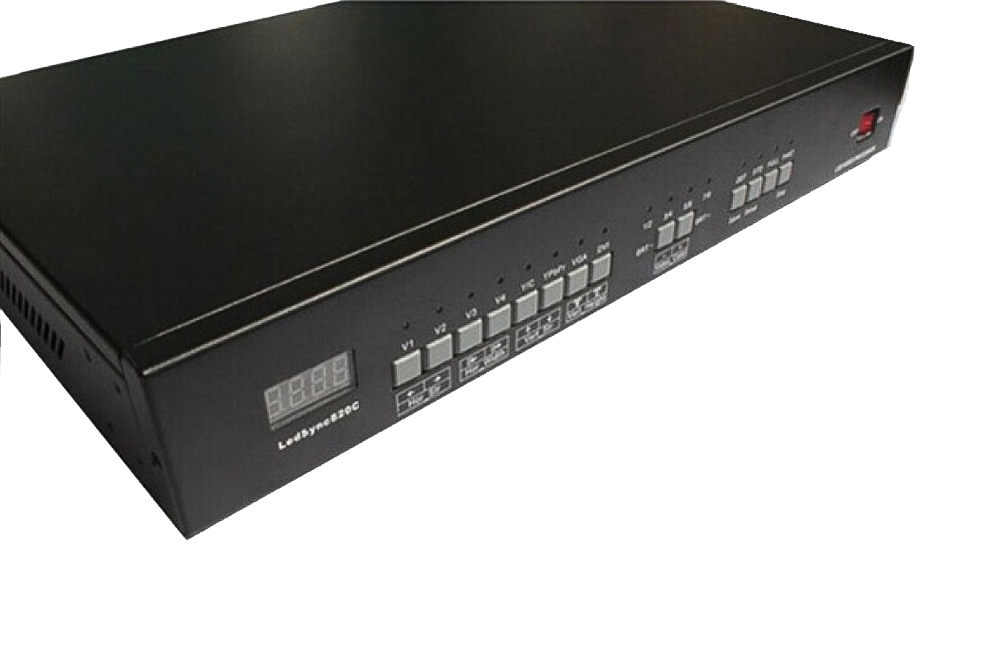

Characteristics of VDWALL LedSync820C(H) LED Video Controller:
1) Digital Video Decoder
2) Video Decoder Adjustments (NTSC, PAL) Brightness, Contrast, Hue,Saturation
3) Adaptive 2/4-line Comb filter for Two Dimensional Chrominance/Luminance Separation
4) State-of-the-art Motion-Adaptive Deinterlace Processor
5) Intelligent Edge Deinterlacing
6) Digital Color/Luminance Transient Improvement (DCTI/DLTI)
7) Advanced 4×4 Pixels Interpolation Scaling Algorithm
8) Advanced 4-symbol LUT for H and V Enlargement Scaler
9) Independent H and V Scaling Ratios
10)10-bit Processing
11) User-defined Gamma Value from 0.4 to 3.99
12) 8 levels Output Brightness Selection
13) User-defined LED Window Size and Location by Front Panel Button setup
14) 1 of 8 Sources Directly Selected by Front Panel Button,includes:
1 x DVI 1 x VGA
4 x CVBS 1 x Y/C
1 x YPbPr
15) Audio Sync Switch
16) Seamless Switch
17) Switch Input Source,Change Brightness automatically by Timing Control Plan
18) LED Transmission Card Built-in ability
19) Remote Control through TCP/IP Internet Network
20) 24/7 Application
