Colorlight A800 LED Cloud Player Overview
The Colorlight A800 is an Android 13 LED display cloud player for installations that need live HDMI sources, stored media and remote content management. Its 16 Gigabit Ethernet outputs support a total load of up to 8.8 million pixels. Use it for commercial advertising screens, corporate exhibition halls, hotel lobbies and other fixed LED displays.
For project planning, treat video decoding, HDMI output and LED loading capacity as separate specifications. The A800 can decode 8K video, but the connected LED screen must still fit its pixel budget and port mapping limits.
Colorlight A800 Specifications
| Specification | Colorlight A800 |
|---|---|
| LED outputs | 16 Gigabit Ethernet ports |
| Total LED loading capacity | Up to 8.8 million pixels |
| Maximum dimensions | Up to 8,192 pixels wide or 4,320 pixels high; total pixel capacity also applies |
| Video decoding | 8K decoding; the official feature page lists two 8K channels at 30 fps |
| HDMI inputs | 3 inputs, with simultaneous display of multiple sources |
| HDMI output | 1 output; up to 3840 × 2160 at 60 Hz |
| Operating system | Android 13 |
| Memory and storage | 8GB memory and 128GB built-in storage |
| Storage expansion | USB drive and SSD expansion, up to 2TB |
| Network management | Gigabit LAN and Wi-Fi; optional 4G/5G module |
| Content tools | PlayerMaster program editing and publishing; cloud cluster management |
| Monitoring | LEDMaster remote status monitoring; external sensors are optional |
Maximum width and height are individual limits, not a supported 8,192 × 4,320 full-pixel canvas. Confirm the complete screen resolution, receiving cards and wiring layout before ordering. See the official Colorlight A800/A500 specification table.
Live HDMI and Scheduled Media Playback
Synchronous display for live sources

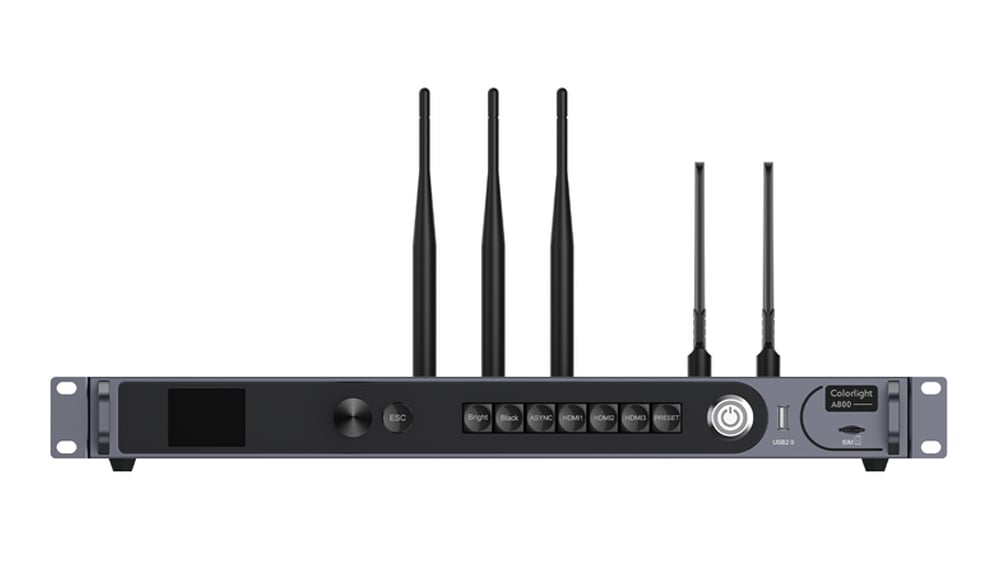

Connect HDMI sources when the display needs to show a presentation or another live feed. Three HDMI inputs support multiple source windows, and the player supports combined synchronous and asynchronous playback. Front-panel controls provide access to source switching, program selection, brightness, volume and blackout.
Asynchronous playback for digital signage
Prepare scheduled programs with PlayerMaster using videos, images, text, clocks, web pages and other supported media. Local storage and USB playback provide ways to run prepared content without keeping a presentation computer connected. Internet-dependent content and remote publishing still require a suitable network connection.
Cloud Management and Installation Planning
LAN and Wi-Fi connectivity allow content management from connected devices. LEDMaster supports remote status monitoring, alerts, and cloud backup of receiving-card settings and screen mapping. For mobile-network deployments, specify the optional 4G/5G module when requesting a configuration. Confirm sensor requirements separately if the installation needs environmental monitoring or automatic brightness adjustment.
- Size the display: multiply its pixel width by pixel height, then check the total load and how cabinets are distributed across output ports.
- Define the content workflow: identify live HDMI sources, stored programs and any network-dependent media.
- Check the receiving system: confirm receiving-card compatibility, firmware and cabinet mapping before installation.
- Choose the accessories: confirm cellular modules, sensors and additional storage against the project requirements.
Browse our LED media players or send your screen resolution and receiving-card model for configuration assistance.
Frequently Asked Questions
Does 8K decoding mean the A800 drives a full 8K LED screen?
No. Decoding describes the source video the player can process. LED output is limited to a total of 8.8 million pixels, and the HDMI output specification is up to 3840 × 2160 at 60 Hz.
Can the A800 play stored content and live HDMI signals?
Yes. It supports asynchronous media playback, synchronous HDMI display and layouts combining both. Choose the program layout and input sources to suit the installation.
Are 4G/5G and brightness sensors included?
The cellular module and external sensors are optional. Confirm the required accessories and supplied configuration before purchase.
How does A800 differ from A500?
The official comparison lists 16 outputs, 8.8 million pixels and 8GB/128GB memory and storage for A800. A500 has 8 outputs, 5.2 million pixels and 4GB/64GB. Compare the Colorlight A500 cloud player if your display needs less output capacity.
Product Images and Downloads
Download Colorlight A800 LED Display Cloud Player Specification (PDF)
For current manufacturer documentation, visit the Colorlight A800/A500 download page and select the A800 specification or user manual.
Conclusion
The Colorlight A800 suits LED projects that need 16 output ports, live HDMI content and scheduled playback within an 8.8-million-pixel capacity. Match the screen layout, receiving cards and optional accessories to the intended installation before choosing your configuration.
