LISTEN XC4 Full Color Asynchronous LED Display Controller Card LISTEN XC4 Full Color Asynchronous LED Display Controller Card Parameter:
|
Parameters |
|
| storage | 2MByte |
| Adaptation range | Seven colors |
| With load range | 640 * 64 (4 sweep), 320 * 128 (16 sweep) |
| The number of programs | Support 128 programs, each program is divided into 16 regions |
| Area type | Graphic / subtitles / animation / time / analog clock / positive and negative timing / temperature and humidity |
| Border display | Program water border / regional water border |
| Clock display | Digital clock / analog clock / timing / countdown |
| communication method | U disk communication |
| Display interface | 4 groups HUB75, 4 groups HUB08 |
| sensor | Temperature and humidity, temperature and humidity sensors |
| Dimming | 16 brightness, support for automatic timing brightness adjustment / software manual adjustment |
| Remote switch | Support automatic timer switch machine / software switch machine |
| Operating Voltage | 3.5V ~ 6V |
| Maximum power | <1W |
| Operating temperature | -40 ℃ -85 ℃ |
| Secondary development | DLL provides a full-featured dynamic library |
| Supporting software | LED Player 6.0 |

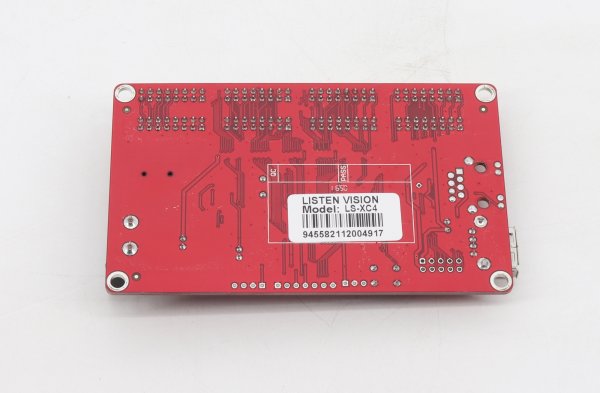

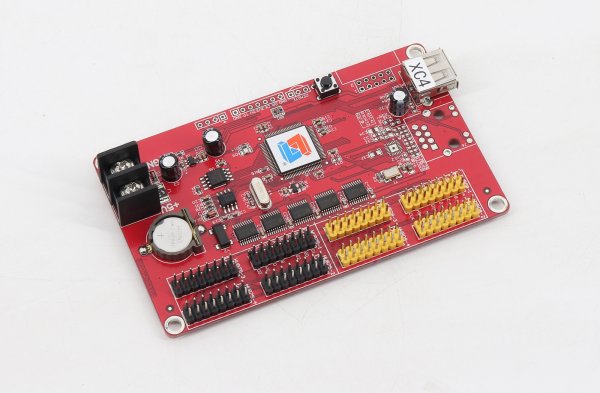

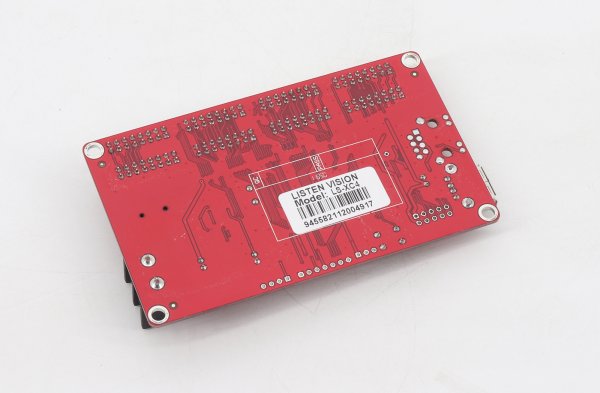

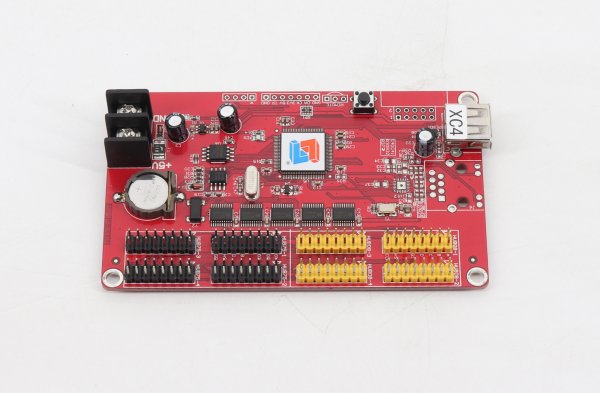

More Pictures of LISTEN XC4 Full Color Asynchronous LED Display Controller Card:
